JPEGuide.nb

Part Six: Summarization Of Effects As Menu Commands

(sharing) In[152]:=

In[153]:=

Functions of the effect which takes the image data and returns the result image data.

In[153]:=

In[154]:=

In[155]:=

In[156]:=

In[157]:=

In[158]:=

In[159]:=

$ApplyThresholdProcess[tid_, roi_, val_] := RegionProcessing[Threshold[#1, val, {0, 255}] &, tid, roi]$

Functions of the effect which takes the java image and returns the result java image.

In[160]:=

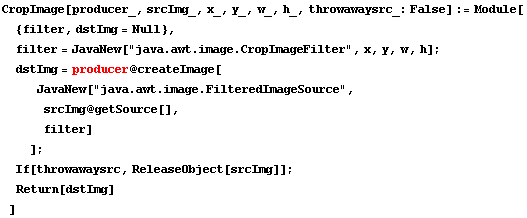

$CropImage[producer_, srcImg_, x_, y_, w_, h_, throwawaysrc_: False] := Module[ {filter, dstImg ... , srcImg @ getSource[], filter] ] ; If[throwawaysrc, ReleaseObject[srcImg]] ; Return[dstImg] ]$

In[161]:=

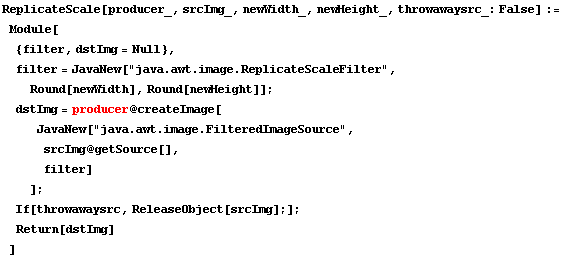

$ReplicateScale[producer_, srcImg_, newWidth_, newHeight_, throwawaysrc_: False] := Module[ {fi ... srcImg @ getSource[], filter] ] ; If[throwawaysrc, ReleaseObject[srcImg] ;] ; Return[dstImg] ]$

In[162]:=

In[163]:=

In[164]:=

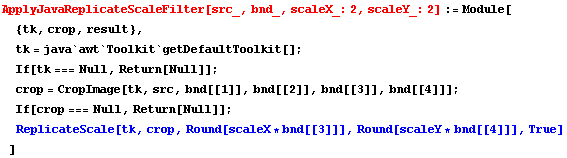

$ApplyJavaReplicateScaleFilter[src_, bnd_, scaleX_: 2, scaleY_: 2] := Module[ {tk, crop, result ... urn[Null]] ; ReplicateScale[tk, crop, Round[scaleX * bnd[[3]]], Round[scaleY * bnd[[4]]], True] ]$

In[165]:=

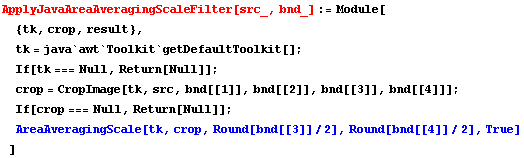

$ApplyJavaAreaAveragingScaleFilter[src_, bnd_] := Module[ {tk, crop, result}, tk = java`awt`To ... Null, Return[Null]] ; AreaAveragingScale[tk, crop, Round[bnd[[3]]/2], Round[bnd[[4]]/2], True] ]$

In[166]:=

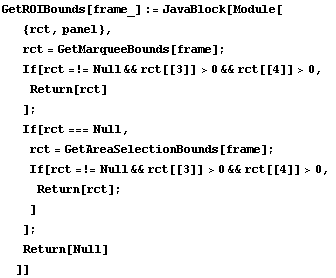

$GetROIBounds[frame_] := JavaBlock[Module[ {rct, panel}, rct = GetMarqueeBounds[frame] ; If[r ... Null && rct[[3]] > 0 && rct[[4]] > 0, Return[rct] ; ] ] ; Return[Null] ]]$

In[167]:=

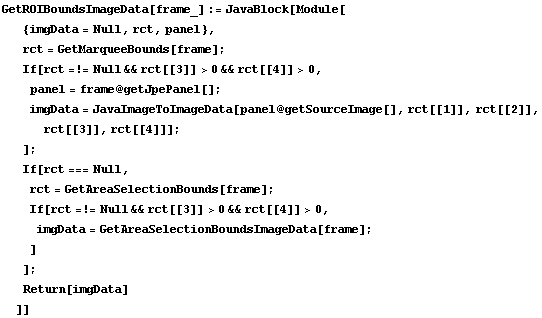

$GetROIBoundsImageData[frame_] := JavaBlock[Module[ {imgData = Null, rct, panel}, rct = GetMar ... mp; rct[[4]] > 0, imgData = GetAreaSelectionBoundsImageData[frame] ; ] ] ; Return[imgData] ]]$

Part Six: Summarization Of Effects As Menu Commands

•ROIBounds Filter

•Threshold

•ProcessEffect

•Menu Commands
