Using LDAP from Mathematica, Part 3

Method written in Part 2 (MathLDAP-02.nb) were followed again.
Descriptions about storing and reading binary data in the entiry were newly added.
OpenLDAP for Linux and Windows were both used.

Junzo SATO

Aug 17th 2001

Installing J/Link

J/Link Mathmatica package is loaded.

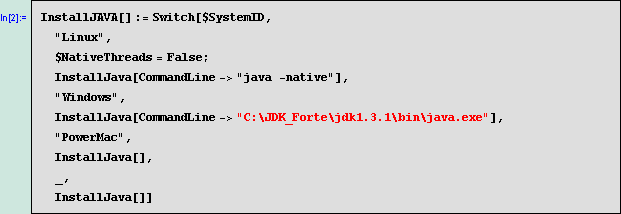

InstallJava[ ] setups J/Link environment so that the Mathmatica can use Java. Options of InstallJava[ ] varies depending on which machine and operating system a user is using.

Controlling Entry

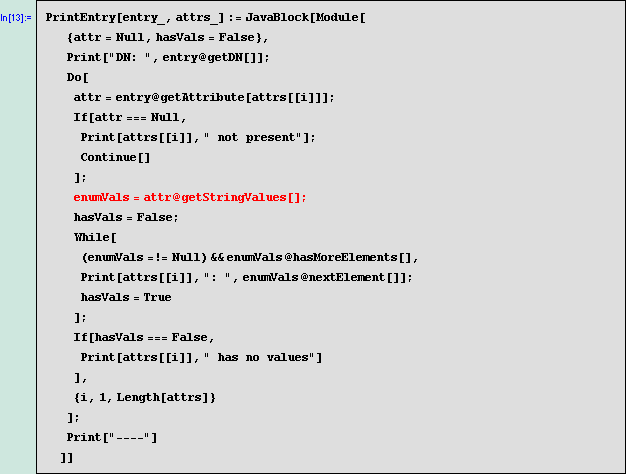

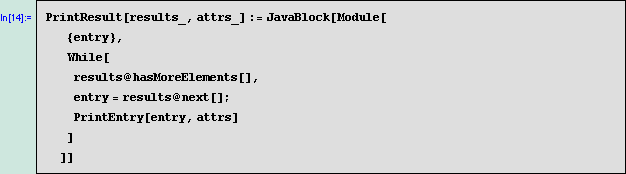

Tools are loaded and defined.

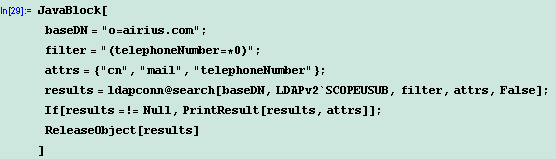

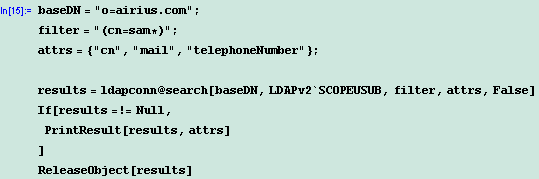

Search by filter.

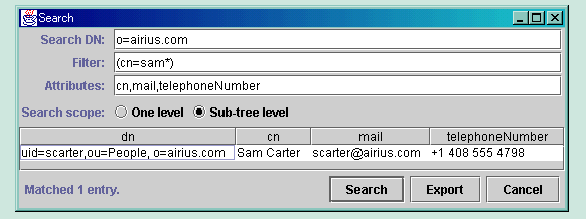

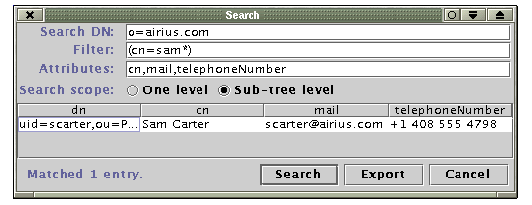

The above result is the same as the one that LDAP Editor/Browser has retrieved.

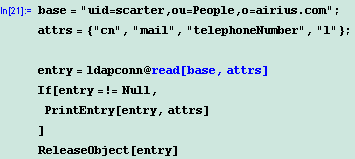

Read by DN.

Null password for authentication means anonymous connection.

Compare

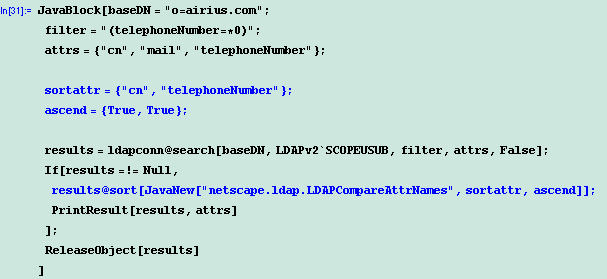

Client-side Sort

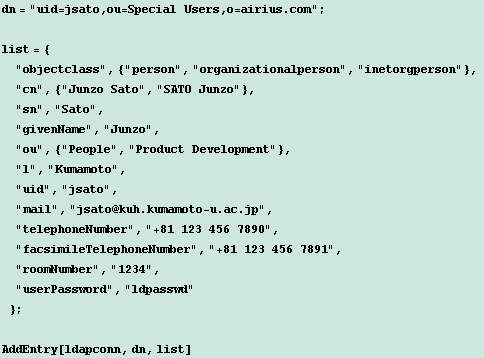

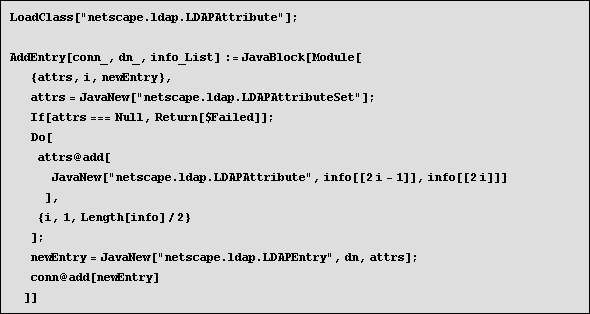

Add NEW Entry

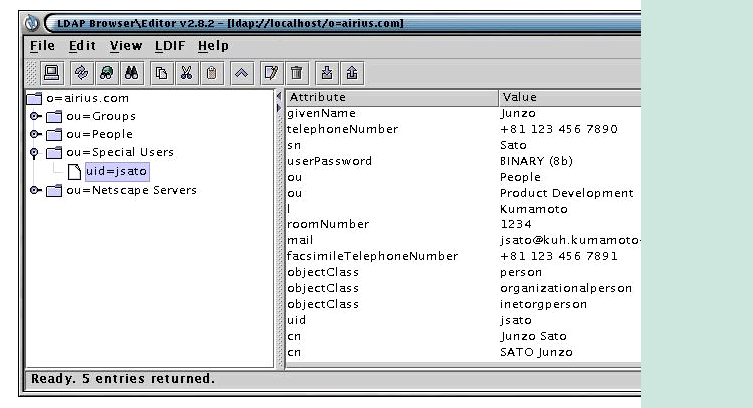

The NEW entry is added successfully. For simplicity, new entry is added under the ou=Special Users directory.

Add Attribute

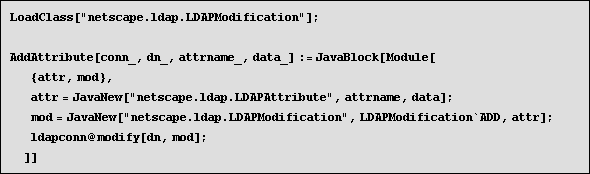

AddAttribute[conn,dn,attrname,data] adds an attribute to the existing entry. If the data is exactly same value as the existing attribute, it fails.

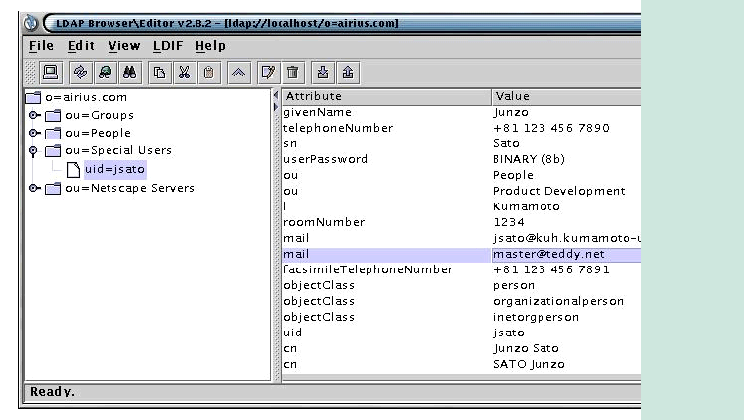

New attribute (multivalued attribute) is added successfully.

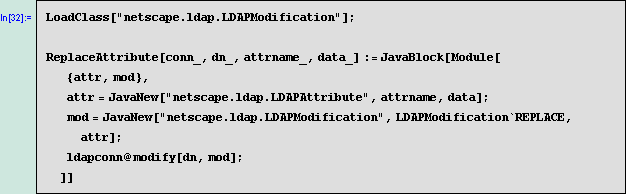

Replace Attribute

Attribute(s) named "mail" is replaced with new data.

It's possible to replace attribute(s) with multivalues.

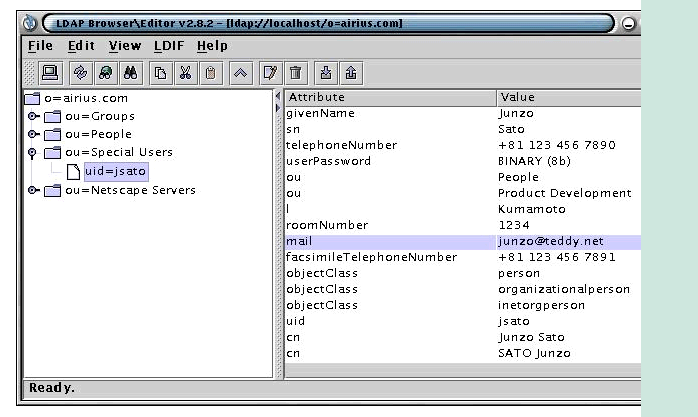

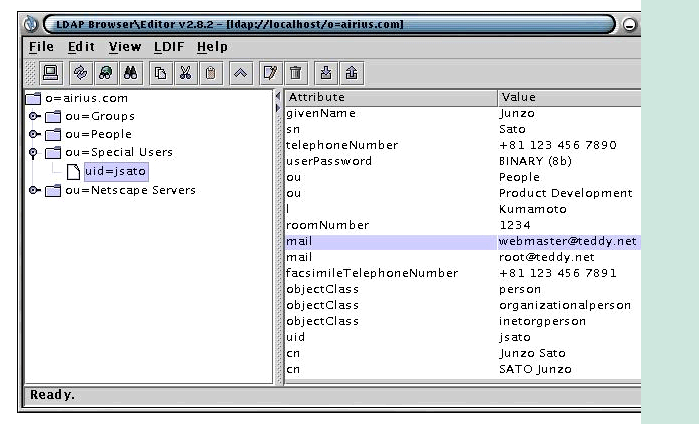

The following figure shows the entry after replacement.

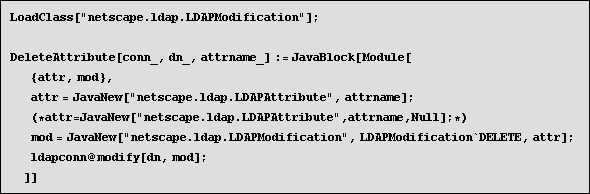

Delete Attribute

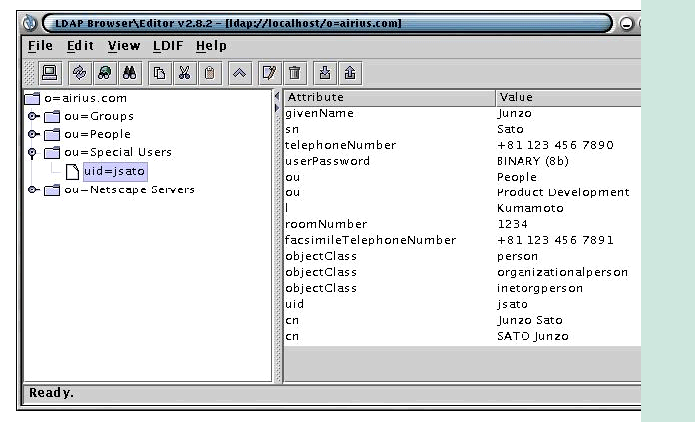

Surely removed :-)

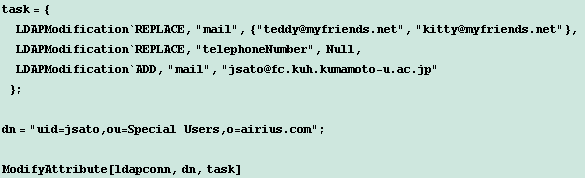

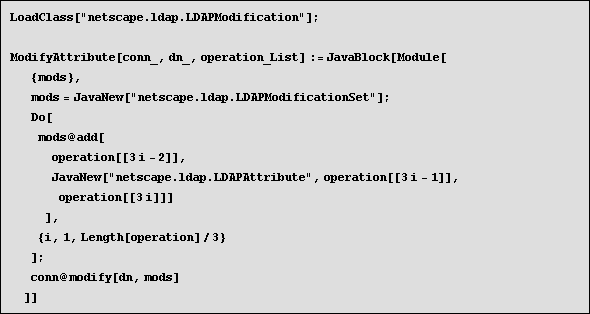

ModificationSet

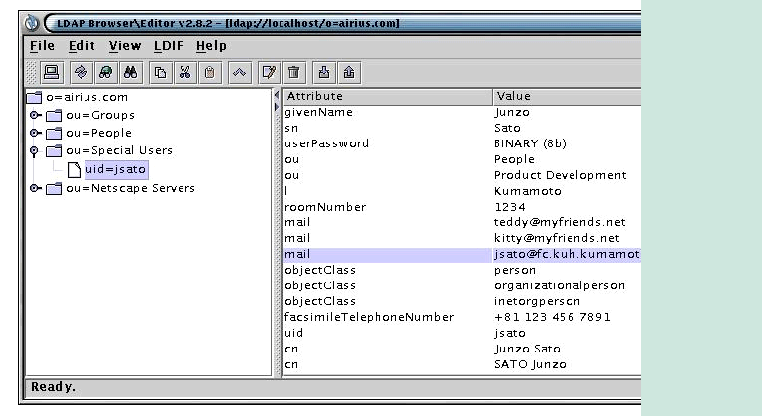

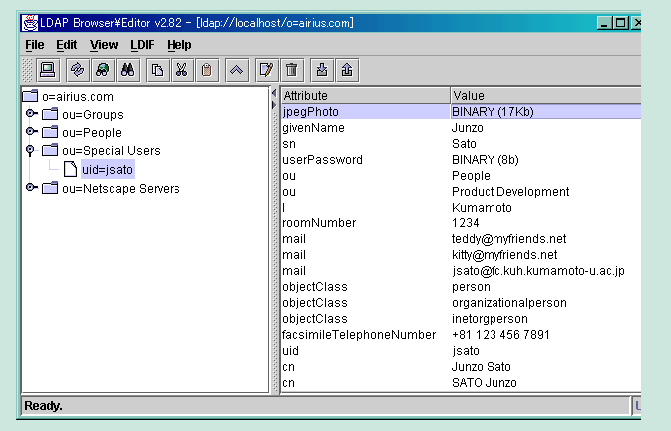

Two mails are listed as the result of first modification. The telephoneNumber is removed by replacing old attribute with null. One more mail is added by the final modification.

Binary Record

Storing binary data

The attribute of the entry can maintain binary record directly.

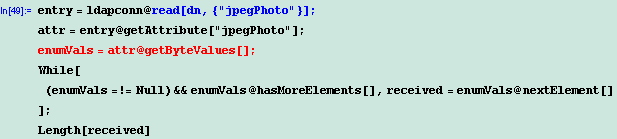

Reading binary data

Data File

The data is stored to the entry.

Now we can see the replaced data. Look at the size of the binary data.

The contents of the data is exactly same before and after the operation.

Finalizing LDAP Connection

Connection to the LDAP server is closed.This is essentially the same as ldapconn@finalize[].

Removing J/Link

Reference

[1] Rob Weltman and Tony Dahbura, "LDAP Programming with Java", Addison-Wesley, 2000
